16230010,754-0760,Schroff Novastar 系列 灰色 鋼 坐地式 25U機架 19 英寸落地柜 16230010, 1167 x 553 x 800mm ,Schroff

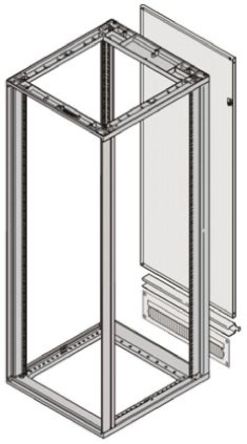

The NOVASTAR cabinet is a slim-line and mobile enclosure designed for 19in. rack mount equipment, which combines the functionality required in the laboratory with the stylish design wanted in the studio. Built around a strong yet lightweight die-cast aluminium frame the cabinet offers a static load-carrying capacity of 200kg (400kg for the heavy duty version). It can be used without a door to allow unhindered access to the front of the mounted 19in. equipment or with a door which features an opening angle of 180 degrees. Quick release side panels offer further access and are recessed flush with the front and rear uprights to keep the overall cabinet width down to a space saving 553mm.
All uprights (front and rear) with 19in. cut-outs
Flush cladding parts
Ingress protection class IP20
3 cabinet depths (500, 600, 800 mm), cabinet width 553 mm
Static load-carrying capacity of 200 kg (9 U to 25 U) and 400 kg (34 U)
Colour combination: side panels RAL 7035 (light grey); frame, top cover RAL 7021 (black grey)
1 x frame, diecast aluminium extrusion uprights with 19in.cut-outs (RAL 7021); 2 x 1mm steel side panels with twist-locking catch (RAL 7035); 1 x 1mm steel flush top cover (RAL 7021); 4 x feet; 1 x earthing kit.
